What I Did

I wrote a concept guide to explain GeoJSON in clear, approachable terms, illustrated structure and syntax with examples, and highlighted real-world use cases in mapping and spatial applications.

Understanding GeoJSON

When you call NWS API endpoints, many responses return GeoJSON—a JSON-based format for describing geographic shapes like polygons, points, and lines.

If you're not from a GIS background, this guide provides the context you need to understand GeoJSON's structure, purpose, and trade-offs before working with NWS data in your application.

This isn't a tutorial or reference—it's a quick orientation to get you up and running.

What you'll learn:

  • What GeoJSON is and why it's useful
  • Core data types (Feature, FeatureCollection, Geometry)
  • Real-world use cases and integration patterns
  • How GeoJSON works with the NWS API

By the end, you'll understand how GeoJSON enables systems to describe geographic features in a human-readable, interoperable format.

What is GeoJSON?

GeoJSON is a lightweight, open standard that uses JSON syntax to describe geographic shapes—such as points, lines, and polygons—along with associated metadata like temperature, wind speed, or place names. The geometric shapes follow a strict, standardized schema so they can be consistently interpreted across applications, while their associated properties use regular JSON key–value pairs.

Because it's built on JSON, GeoJSON is:

  • Human-readable - Easy to understand and debug
  • Easy to parse - Works natively with JavaScript and most programming languages
  • Web-native - Integrates seamlessly with mapping libraries and APIs

You'll encounter GeoJSON in mapping applications, geospatial APIs, and data visualization tools across the web.

The GeoJSON Data Model

GeoJSON uses a hierarchical structure. This diagram shows how the components fit together:

flowchart TD
  A["FeatureCollection"]
  A --> B["Feature (1..n)"]
  B --> C["Geometry (Shape)"]
  C --> C1["Point"]
  C --> C2["LineString"]
  C --> C3["Polygon"]
  B --> D["Properties (Metadata)"]

Why the Extra Structure Matters

Regular JSON lets you represent location data however you want:

{"lat": 37.7749, "lng": -122.4194}
{"latitude": 37.7749, "longitude": -122.4194}
{"coords": [37.7749, -122.4194]}
{"point": {"x": -122.4194, "y": 37.7749}}

All valid JSON, but each requires custom parsing logic. GeoJSON eliminates this ambiguity:

{
  "type": "Point",
  "coordinates": [-122.4194, 37.7749]
}

One format. Zero ambiguity. That's why mapping libraries can render GeoJSON with a single line of code.

GeoJSON has three main building blocks: FeatureCollection, Feature, and Geometry.

FeatureCollection

A FeatureCollection is the top-level container. It contains:

  • A type field set to "FeatureCollection"
  • A features array containing one or more Feature objects

Think of it as a wrapper that holds multiple geographic features together.

Feature

A Feature represents a single geographic shape with both:

  • Geometry- The actual shape (Point, Polygon, LineString, etc.)
  • Properties - Metadata like names, values, or measurements

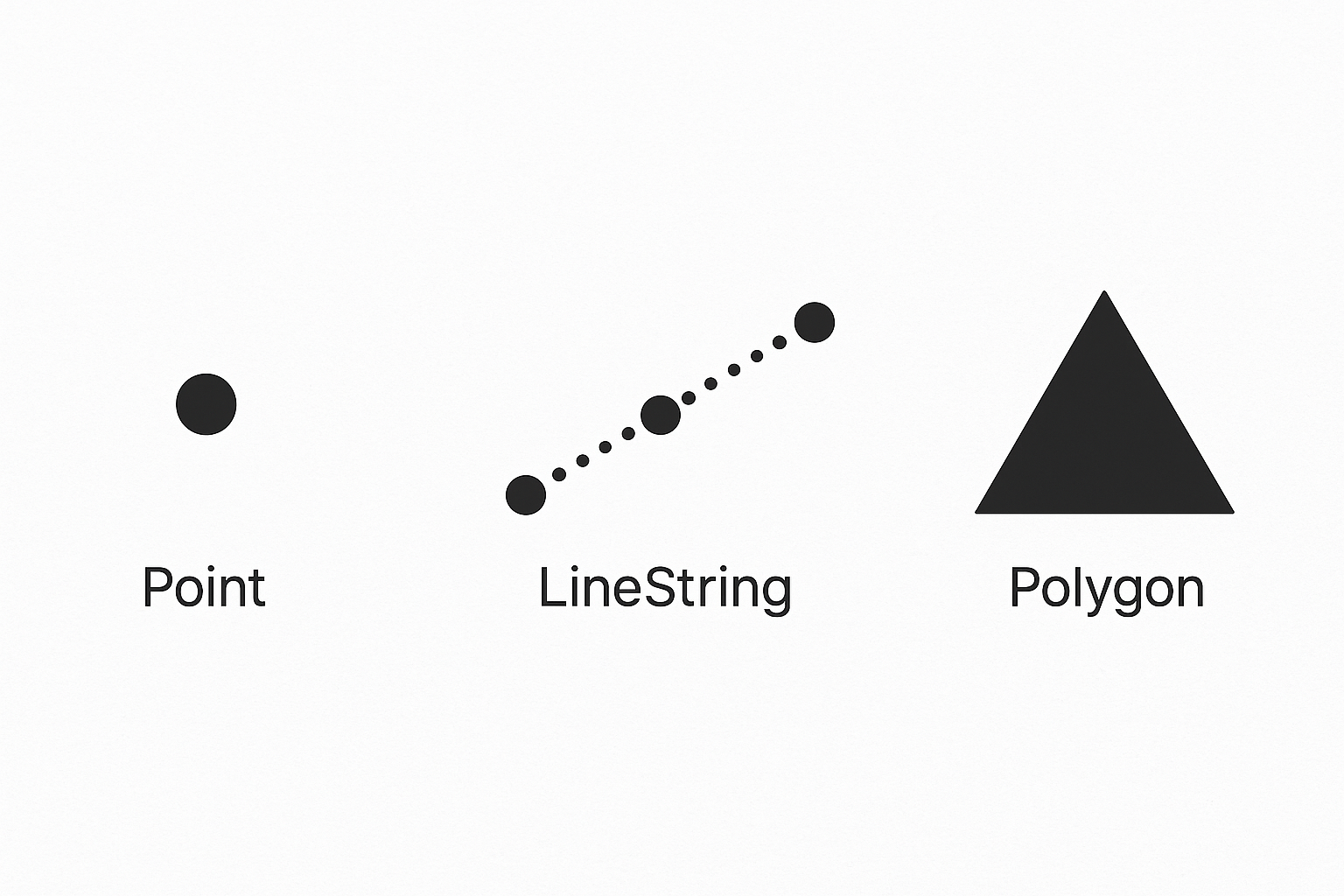

GeoJSON polygons

GeoJSON polygon example


Each Feature includes:

  • type: Always "Feature"
  • geometry: Defines the shape using one of these types:
  • Point - Single coordinate
  • LineString - Connected line segments
  • Polygon - Closed shape with area
  • MultiPoint, MultiLineString, MultiPolygon - Collections of shapes
  • GeometryCollection - Mixed geometry types
  • properties: Key-value pairs with descriptive data (e.g., name, temperature, population)

Example: Basic GeoJSON Structure

Here's a simple FeatureCollection with a single Point feature:

{
  "type": "FeatureCollection",
  "features": [
    {
      "type": "Feature",
      "geometry": {
        "type": "Point",
        "coordinates": [-122.4194, 37.7749]
      },
      "properties": {
        "name": "San Francisco",
        "population": 873965
      }
    }
  ]
}
Key observations:

  • Coordinates are [longitude, latitude] (note the order!)
  • Properties can contain any valid JSON data
  • The structure is predictable and consistent

GeoJSON vs. Generic JSON

Unlike plain JSON, GeoJSON follows a strict schema defined in RFC 7946. This standardization enables different applications to parse and display the same data reliably.

Required Fields

Every GeoJSON object must include:

  • type - The object type (Feature, FeatureCollection, Point, etc.)
  • geometry - The shape being described
  • properties - Metadata associated with the shape (can be null)

Validation Tools

Ensure your GeoJSON follows the specification using these tools:

  • geojson.io - Paste and visualize instantly in your browser
  • geojsonhint (CLI) - Catch errors from the terminal
  • geojson-validation (JavaScript library) - Validate programmatically in code

Benefits of a Structured Schema

Following the GeoJSON standard ensures:

  • Interoperability - Works across different apps and APIs
  • Faster parsing - Predictable structure improves performance
  • Tool compatibility - Works with GIS software and databases
  • Fewer errors - Validation catches issues early
  • Scalability - Handles large datasets efficiently

Why GeoJSON Works the Way It Does

Front-End Integration

GeoJSON integrates seamlessly with popular web mapping libraries:

  • Leaflet
  • Mapbox GL JS
  • OpenLayers
  • Google Maps API

Rendering a shape on a map often takes just one line of code:

L.geoJSON(myGeoJSON).addTo(map);

You can style features and add interactivity with built-in methods, making GeoJSON ideal for building interactive maps and location-based features quickly.

API Integration

Many APIs—including OpenStreetMap, Google Maps, and NWS—send or receive GeoJSON directly, keeping data exchange clean and consistent.

Database Support

PostgreSQL with PostGIS has native GeoJSON support. You can:

  • Store GeoJSON objects directly in tables
  • Run spatial queries without conversion
  • Index geographic data for fast lookups

Example query:

SELECT ST_AsGeoJSON(geom) FROM weather_zones WHERE state = 'CA';

How GeoJSON Fits into NWS API Workflows

The NWS API returns GeoJSON by default for many endpoints, including active alerts. Here's a common workflow for rendering weather alerts on a map.

Step 1: Request Active Alerts

curl https://api.weather.gov/alerts/active

The response includes GeoJSON features. A storm warning might look like:

{
  "type": "Feature",
  "properties": {
    "event": "Severe Thunderstorm Warning",
    "severity": "Severe",
    "areaDesc": "Southwestern Burlington County, NJ",
    "headline": "Severe Thunderstorm Warning until 8:00 PM EDT"
  },
  "geometry": {
    "type": "Polygon",
    "coordinates": [
      [
        [-74.9, 39.9],
        [-74.6, 39.9],
        [-74.6, 40.1],
        [-74.9, 40.1],
        [-74.9, 39.9]
      ]
    ]
  }
}

Step 2: Render on a Map

fetch('https://api.weather.gov/alerts/active')
  .then(res => res.json())
  .then(data => {
    L.geoJSON(data).addTo(map);
  });
Leaflet reads the GeoJSON directly—no conversion needed—and draws the warning polygon on the map.

Step 3: Add Styling and Interactivity

Enhance the visualization with custom styles and popups:

L.geoJSON(data, {
  style: feature => ({
    color: feature.properties.severity === 'Severe' ? '#d32f2f' : '#ff9800',
    weight: 2,
    fillOpacity: 0.3
  }),
  onEachFeature: (feature, layer) => {
    const popup = `
      <strong>${feature.properties.event}</strong><br>
      ${feature.properties.areaDesc}<br>
      <em>${feature.properties.headline}</em>
    `;
    layer.bindPopup(popup);
  }
}).addTo(map);

Result: Interactive map showing color-coded weather alerts with detailed popups.

GeoJSON vs. Other Formats

GeoJSON

Key traits: JSON-based, web-native

Pros - Easy to read - Works with JS - Great for APIs

Cons - Larger files than binary - No topology

Shapefile

Key traits: Legacy GIS format

Pros - Compact - Widely used in GIS tools

Cons - Multi-file - Not web-friendly

KML

Key traits: XML-based (Google Earth)

Pros - Supports rich styling and 3D

Cons - Verbose - Slower to parse - Less JS-friendly

TopoJSON

Key traits: JSON with topology

Pros - Smaller size - Shared boundaries

Cons - Requires preprocessing - Fewer libraries support it

Common GeoJSON Use Cases

GeoJSON is a good choice in scenarios where you need:

Web Mapping

  • Displaying weather alerts on interactive maps
  • Visualizing delivery zones or service areas
  • Showing store locations with metadata

Data Visualization

  • Creating choropleth maps (color-coded regions)
  • Building dashboards with geographic components
  • Animating geographic data over time

API Integration

  • Exchanging location data between services
  • Storing geographic features in NoSQL databases
  • Building location-based search features

Analysis and Processing

  • Filtering features by geographic bounds
  • Calculating distances and areas
  • Performing spatial joins

When to choose GeoJSON:

  • Building web applications
  • Working with APIs
  • Need human-readable format
  • Rapid prototyping

When to consider alternatives:

  • Very large datasets (use TopoJSON or binary formats)
  • Desktop GIS workflows (Shapefile may be expected)
  • 3D visualization requirements (consider KML)
  • Topology-heavy analysis (TopoJSON preserves relationships)

Summary and Next Steps

GeoJSON is JSON with standardized rules for describing geospatial data—and that's exactly why it works so well for modern web applications.

Key takeaways:

  • GeoJSON is lightweight, human-readable, and web-native
  • It follows a strict schema (RFC 7946) for interoperability
  • Works seamlessly with mapping libraries and APIs
  • Ideal for web apps, though other formats may suit specific use cases

Continue Learning

Now that you understand GeoJSON fundamentals, put it into practice:

NWS API Reference - Explore which endpoints return GeoJSON data, including active alerts and forecast zones geojson.io - Experiment with creating and visualizing GeoJSON interactively
